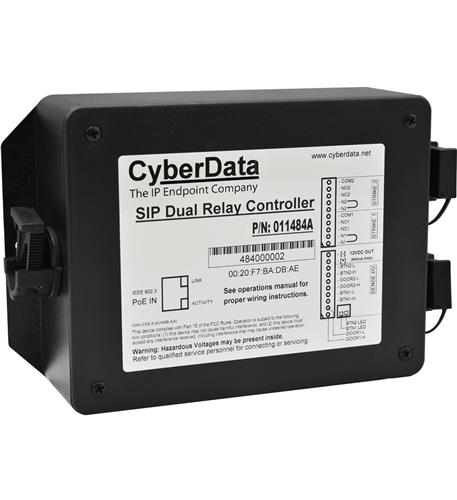

CD-011484 SIP Dual Relay Controller

Description

– Two high amperage relays, activated by DTMF or the web, can activate for a set time (pulse), indefinitely, or as an airlock
– Tamper alert can generate a SIP call to an extension
– Multicast page and/or SIP call on state of the sensor as configured by the user
– Time stamped access log
– Support for security code to prevent unwanted SIP calls
– Supports user-uploadable messages
– Dual 12A relays
– NO/NC contacts
– 12V @ 500 mA for direct powered strikes
– Opto-isolated sense inputs
– Device status LED
– Wall mountable
– Cable strain relief
– TLS 1.2 and SRTP enhanced security for IP endpoints in a local or cloud-based environment
– Autoprovisioning via HTTP, HTTPS, or TFTP
– HTTPS web based configuration
– Configurable event generation for device health and status monitoring
– 802.11q VLAN tagging
– Web-based upgradeable firmware
– Support for Cisco SRST resiliency
