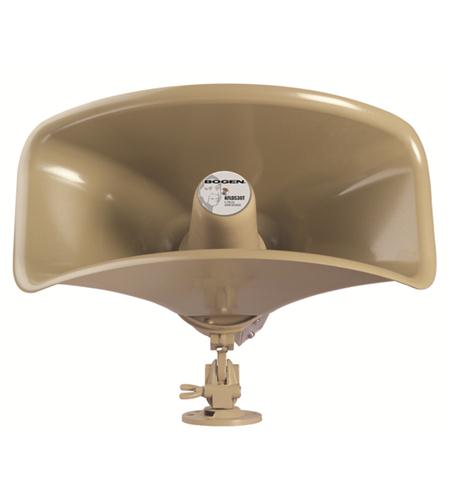

Description

– 30 watts max. @ 70 volts or 15 watts max @ 25 volts
– Weatherproof polycarbonate and aluminum construction
– Driver enclosed in weatherproof housing
– 70° x 95° dispersion with rotatable horn flare
– All-purpose mounting bracket provides precise positioning in the vertical and horizontal planes with a single adjustment
– Seven-position, weather-sealed tap selector switch
– Rotary switch-selected power taps
– Tap settings for 70V: 30, 15, 7.5, 3.7, 1.8 watts; for 25V: 15, 7.5, 3.7, 1.8, 0.9, 0.5, 0.25 watts
– Self-aligning, field-replaceable diaphram
– High-intelligibility and efficiency
– Screw terminals for easy audio line connection
– Plastic cover protects connectors and tap selector switch, also provides strain relief for the audio line
– Textured mocha enamel finish on aluminum, matching polycarbonate horn flare
– Limited lifetime warranty
– Mountable to I-beam flange using Bogen’s BC1 Beam Clamp (sold separately)
– Mountable to electrical box using Bogen’s HSES10 mounting strap (sold separately)
– Terminal cover (TCSPT1) allows connection of conduit fittings to horn speakers (sold separately)
