Description

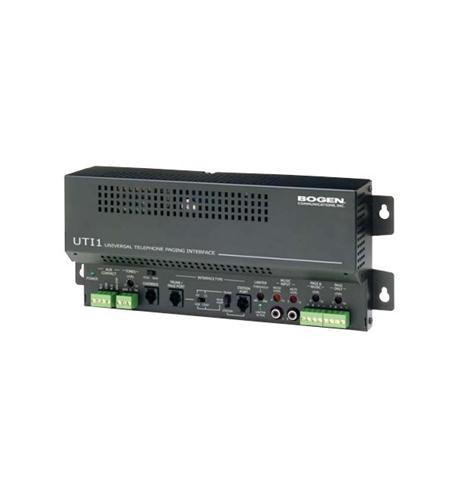

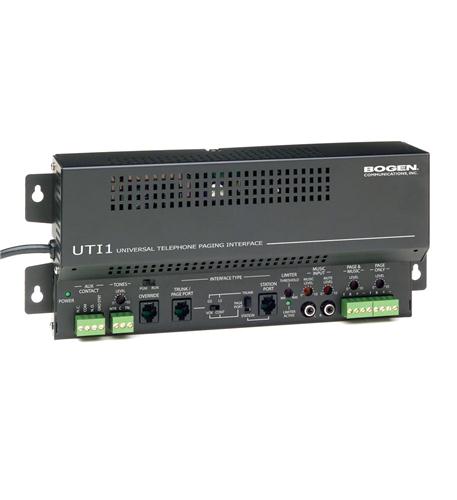

– Bogen single-zone paging universal telephone interface
– Compatible with all standard analog port types
-Includes 2 audio outputs with level controls, each of which can provide audio for 150 Bogen self-amplified speakers
– Telephone interfaces: loop start trunk, ground start trunk, station access (analog ring-up), page port contact closure activation, page port voice activation
– Simple 2-switch interface setup
– Programmable activation of AUX contacts
– C-form contact
– High-impedance transformer isolated background music inputs with volume control
– Override paging (using loop start trunk or page port contact closure activation) with zone group
– Night ringer (contact closure activation)
– Tone triggers (tone and duration selectable, closure activated) with individual zone groups
– Tone burst (2 to 7 seconds), chime or slow whoop
– Non-volatile memory for setup data (nobackup battery required)
– Setup Tone to assistin volume setting
– Pluggable terminal strips
– Microcontroller-based operation
– DTMF programming
– DTMF Block to help suppress DTMF tones over paging system
– Programmable timers control page duration (station and trunk)
– Wall- or Rack-mountable
– 2 Year manufacturer’s warranty
-(+20) Bogen power units

BGUTI1
