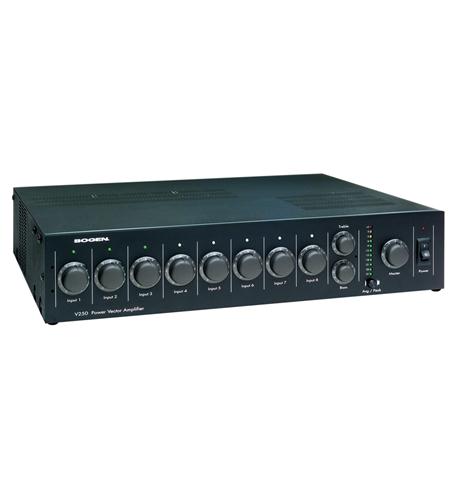

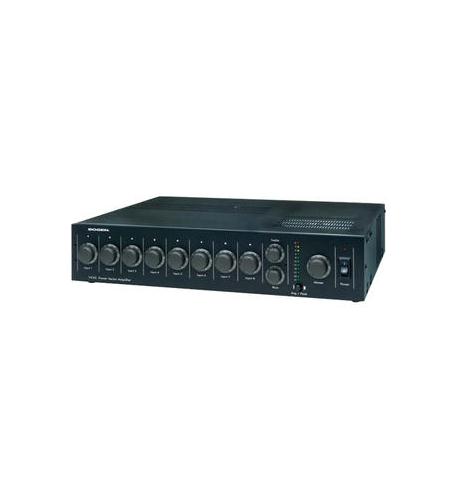

Description

– 5 models ranging from 35W to 250W each; a mixer-only version (VMIX) is also available
– Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads
– 8 module bays
– Wide selection of advanced plug-in modules (modules sold separately)
– 4 levels of priority between modules
– 2 module bays capable of handling plug-in signalprocessing output modules
– 11-segment LED output level meter monitors the output level of the power amplifier with Peak and Average meter switch
– Motorized master volume control can be remotely operated
– Lockable switch permits user to select either transformer-coupled outputs or a direct low impedance output
– 5-position barrier strip, with clamping washers, provides connections for speaker loads
– Bridging In/Out connector
– External access to priority mute buses
– Bridging jack and Mute terminals join multiple Power Vector amps and mixers together
– Independent volume control for each of the eight module bays
– Two-color LED for each channel indicates input signal or clipping
– Bass and treble control with bypass switch (located in module bay 6)
– 125 Hz Low Cut switch (located in module bay 6)
– Signal-processing insert jacks allow external equipment to be inserted between the pre-amp output and the power amp input
– Pre-EQ, unbalanced, buffered output signal (“post” all unit controls, but “pre” any external “Insert” equipment connected)
– Grounded, unswitched AC convenience receptacle with a 500W maximum capacity provided for external equipment
– 8 module security cover/filler plates included with amplifier (PVMC)
– Push-button remote volume control panel (Model RVCP, sold separately)
– Security cover to selectively protect volume, bass, and treble controls (Model PVSC, sold separately)
– Rack mountable (with rack mounting kit RPK87, sold separately)
– 2 rack spaces high (3-1/2″)
– Listed to UL Standard 60065 for U.S. and Canada

BGV100
