Description

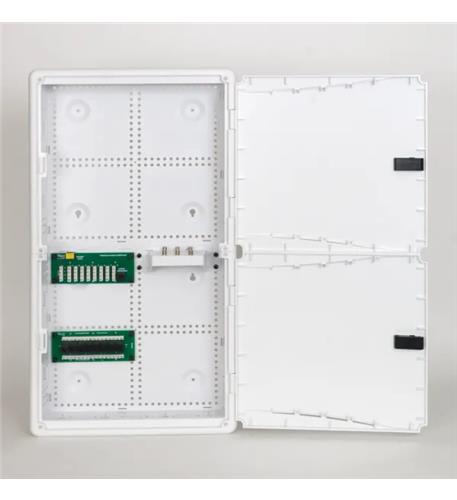

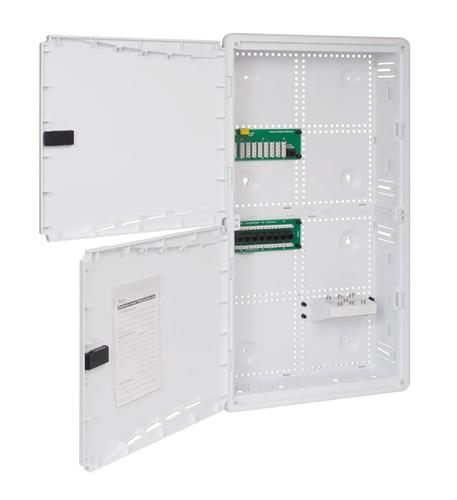

– 28? Plastic Wiring Enclosure Voice, Data, and Video Combo with Doors (Model K)
– 0.1-inch thick plastic enclosure.
– Mount between 16-inch wall studs or on a wall.
– Modules are packaged separately for subsequent installation.
– Modules can snap in horizontally and vertically.
– Sixteen module mounting spaces.
– Removable cable entry knockouts; three on top and three on the bottom.
– Eight built-in cable tie points.
– Removable knockouts for four AC power outlets (not included) to provide power distribution.

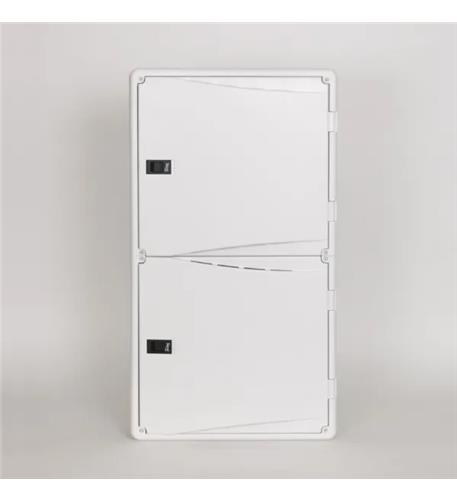

– Vented front doors.
– Complies with UL 1863, TIA-568-C, TIA-570-B, and TIA-607 standards.
– UL® 94V-0 safety rated.
– Material: ABS, UL 94V-0
– Color: White
– Surface Finish: Matte
– Package Includes:
– 28” Plastic Net Media Center, 2 Pieces
– Net Media Center Door, 2 Pieces
– Cardboard Protective Cover, 2 Pieces
– CAT 6 Module, Data, 8- Port , 1 Piece
– Telephone Module, 8-Port w/RJ31X, 1 Piece
– Resi Module, 2 GHz Video Splitter, 1×6, 1 Piece
– 6-18 x 3/4?, Nickel Plated, Pan Head Phillips, Self-Tapping Screw, 8 Pieces
– 10-16 x 1? Zinc Plated, Flat HeadPhillips, Wood Screw, 4 Pieces
– Wiring Location Sheet, 1 Sheet
– Protective Cover, 1 Piece
