Description

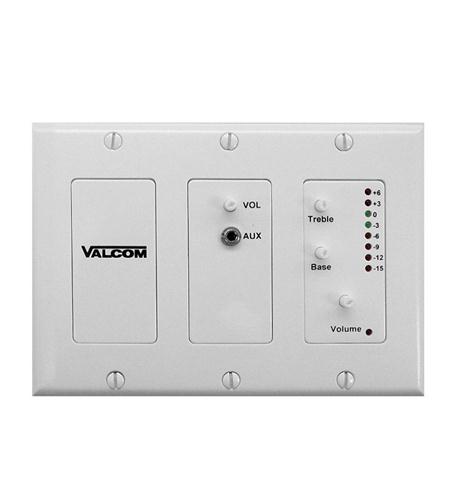

– Valcom 2 Channel White In-Wall Audio Mixer
– Provides active mixing for 1 balanced microphone input and 2 auxiliary inputs
– Additional audio input (building page) with an override feature
– Mounts in 4 gang deep electrical box and is supplied with a 4 gang white decorator style face plate
– Up to 3 additional remote modules (VC-V-9984) may be connected to the main control module
– Each remote module adds 1 balanced microphone and 1 auxiliary input
– Two pair structured cable is used to connect remote input modules to the main mixer
– Contemporary styling to match today’s offices, conference rooms and restaurant environments
– Master volume control is provided for final level adjustments
– 8 segment LED meter provides instant visual indication of audio signal levels
– Building page input overrides all other sources (voice operated, switch enabled)
– Full frequency range output for speakers and modified output for horn loads
– Built in compressor (option switch controlled) evens out loud and quiet inputs
– Operates on 24 Vdc requiring 1 valcom power unit
