Description

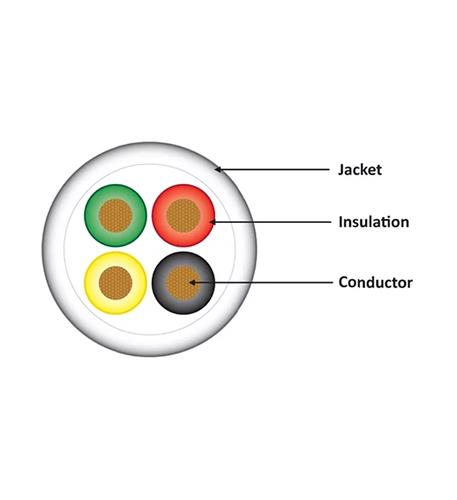

– CONSTRUCTION: 18 AWG 7 STRAND BARE COPPER 4 CONDUCTORS TWISTED AND JACKETED
– INSULATION: SR-PVC
– COLOR CODE: BLACK, RED, WHITE, GREEN
– SHIELD/DRAIN: UNSHIELDED
– ASSEMBLY: 4 CONDUCTORS TWISTED AND JACKETED
– JACKET: PVC
– DIAMETER: 0.182” Nominal
– UL: CMR OR CL3R OR FPLR
– FOR PLENUM RATED VERSION GO TO SPEC. NO. P40031
– CAPACITANCE: 25.4 pF/ft Nom.
– VEL OF PROP: 55%
– IMPEDANCE: 73 OHMS
– RESISTANCE: 6.92 OHMS D.C. PER 1000 FT @ 68 DEG. F MAXIMUM
– TEMP/VOLTAGE: 75C / 300V (UP TO 300V ; POWER-LIMITED SYSTEMS PER NEC ART. 725 OR 800)
